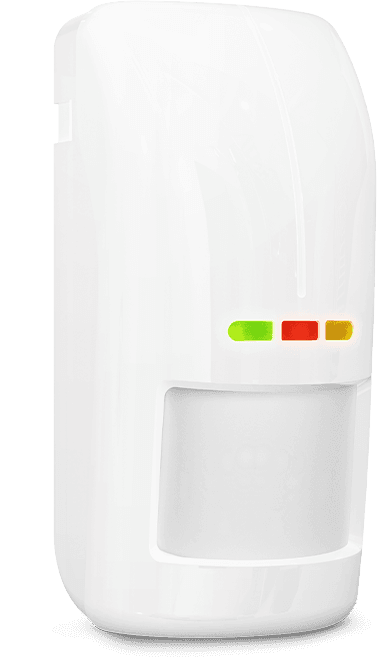

Outdoor Motion Detector
Device type: AOD-210
External dual motion detector protects the area between the fence and the building. You can also use it to implement automation functions, e.g. to control garden lighting.
Download
- PIR and MW motion detector
- pet immunity – up to 20 kg
- coverage area 16 m x 16 m, angle 90°
- digital motion detection algorithm for both sensors
- digital temperature compensation
- creep zone protection
- built-in dusk sensor – measuring range: 2 lx…250 lx
- built-in temperature sensor – measuring range: -40°C…+55°C
- LED indicator
- supervision of motion detection system
- battery status control
- operation in the 868 MHz frequency band
- AES encrypted two-way radio communication
- transmission channel diversity – 4 channels for automatic selection of the one that will enable transmission without interference with other signals
- remote settings programming
- remote firmware update
- weatherproof enclosure – IP54 ingress protection
- operating temperature range from -40°C to +55°C
- option to mount HOOD C protective cover on the detector’s enclosure
- tamper protection against enclosure opening and removal from mounting surface
- compliance with EN 50131 Grade 2 – for indoor applications
- can be installed with the use of:
- dedicated brackets from BRACKET C (GY) set:
- angle type bracket: constant 45° angle
- ball-joint bracket: adjustable vertically through 60° and horizontally through 90°
- dedicated brackets from BRACKET E set:
- BRACKET E-1 (GY) – body for attaching the BRACKET E-2B inserts
- insert for mounting
- 30 mm distance piece enabling the detector to be distanced from the wall or ceiling
- BRACKET E-4 (GY) – 20 mm mounting base
- ball-joint bracket: adjustable vertically through 60° and horizontally through 90°
- BRACKET E-6 – tamper sensor with NO/NC switch and 50 cm long cables
- dedicated brackets from BRACKET C (GY) set:
- available in two colour versions:
- white – Outdoor Motion Detector
- grey – Outdoor Motion Detector GY
