Smart 2-CH Relay
Device type: ASW-210
Two-channel controlling device dedicated to control, e.g. lighting, electric heating or entry and garage gates.
Download
- 2 separate channels for turning ON / OFF up to two 230 V AC electrical appliances

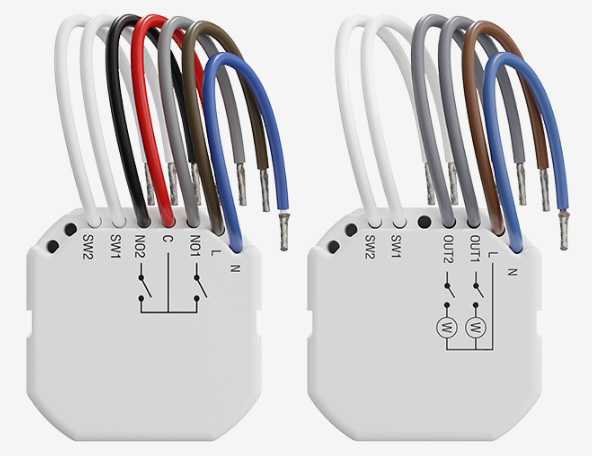

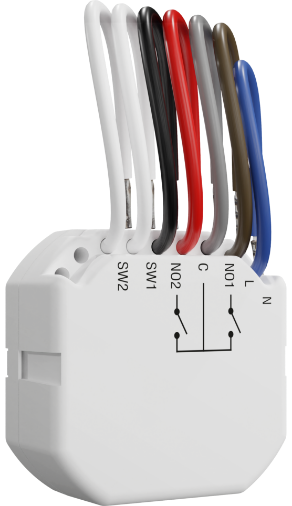

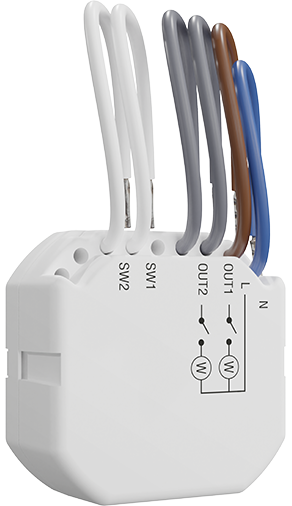

- 2 relay outputs:
- remote control
- local control by means of control inputs
- galvanic isolation of the outputs
- maximum load: 2 x 1250 W

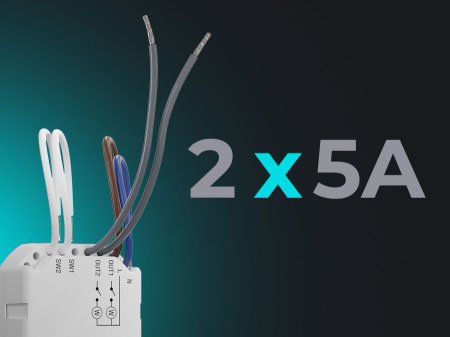

- current load capacity: 2 x 5 A

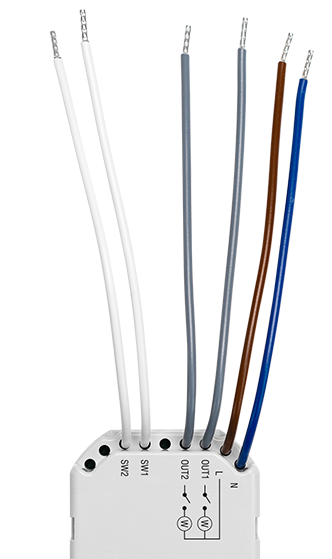

- 2 control inputs:
- capability to connect a double push-button or a switch
- local control of the relay output
- capability to control any device in the system
- operation in the 868 MHz frequency band
- AES encrypted two-way radio communication
- transmission channel diversity – 4 channels for automatic selection of the one that will enable transmission without interference with other signals
- remote settings programming
- remote firmware update
- protection against overload and overheating
- housing made of non-flammable plastic

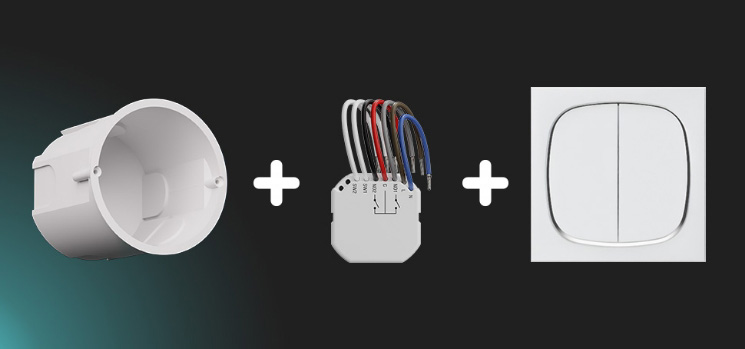

- installed in a flush- or surface-mounted junction box with a minimum diameter of 60 mm
